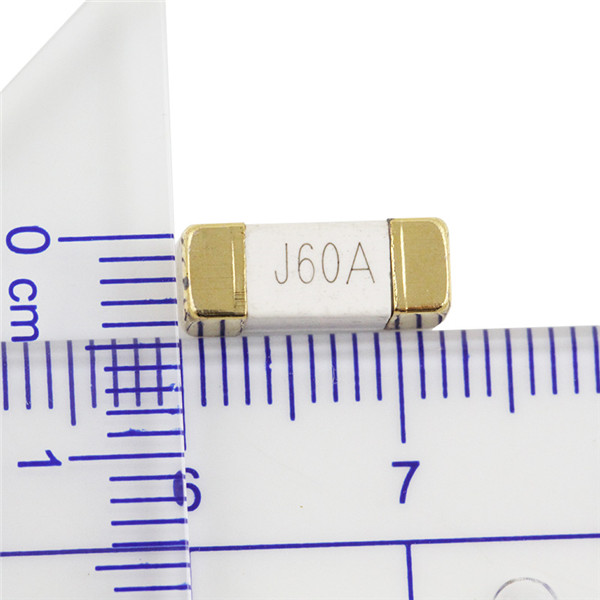

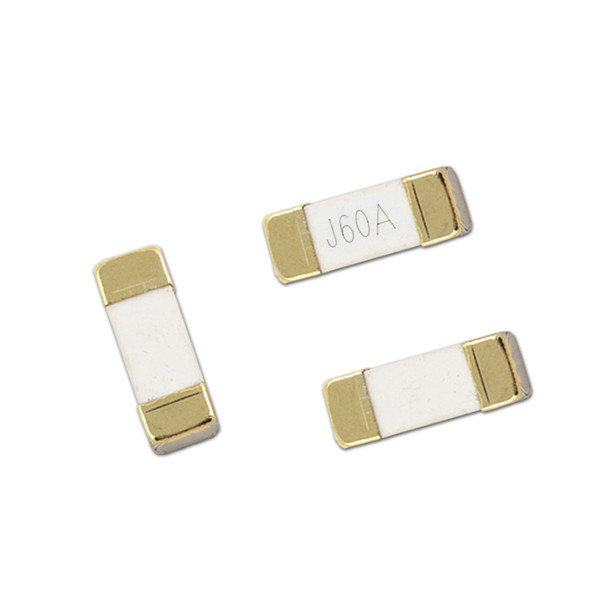

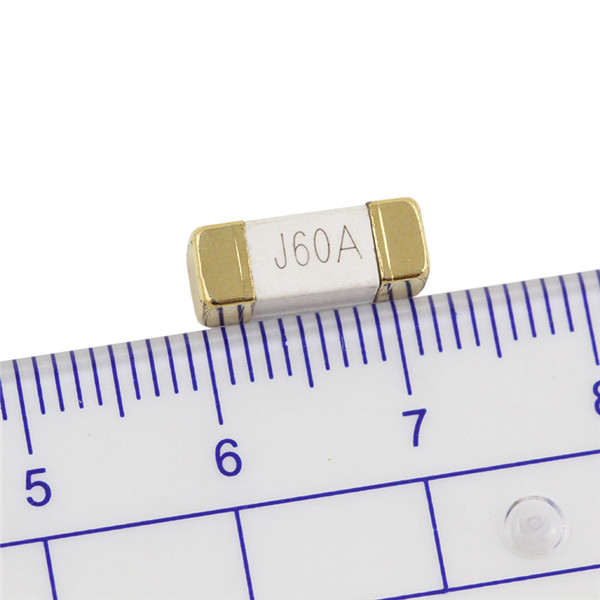

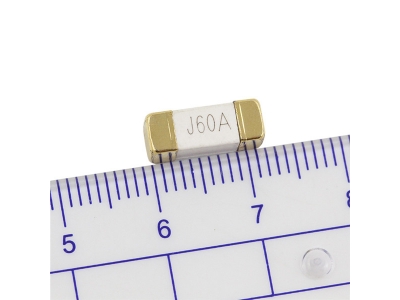

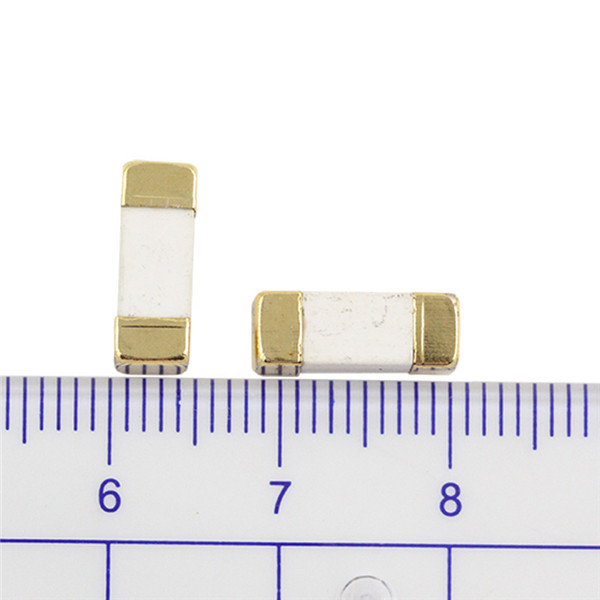

JDTfuse0456 SERIES FUSE

The JFC0456 series fast-acting square SurfaceMount fuse are designed for high-end cloudcomputing sercers,telecom base station powersupplies, blockchain servers, and new energy vehiclebattery management systems,RoHScompliant,Halogen Free and lead(Pb) exempts of therequirements of RoHS Directive(2002/95/EC), withU.S.(UL/CSA) safety agency approvals. Provide boardlevel primary and secondary circuit protection in awide variety of applications. With excellent inrushcurrent withstanding capability,excellent reliability forthermal and mechanic shock, also have a highreliability and stable solder ability, end caps areavailable in gold/silver plated.

  • Brand： JDT fuse
  • Classification： Disposable fuse
  • Voltage： 125V
  • Current： 1A-100A

JDTFUSEJFC0456TS


Part NumberAmpere
Rating
(A)		Max
Voltage
Rating(V)		Breaking CapacityNominal Cold
Resistance
(mohms）		Nominal Melting
I2t(A2sec)
JFC0456-0200FS0.20250VAC/DC

50A@400VAC/DC
100A@350VAC/DC
150A@250VAC/DC
150A@125VAC/DC

9200.125
JFC0456-0250FS0.258600.145
JFC0456-0300FS0.306200.162
JFC0456-0315FS0.3155500.189
JFC0456-0375FS0.3754700.200
JFC0456-0400FS0.403800.238
JFC0456-0500FS0.503200.275
JFC0456-0600FS0.602850.470
JFC0456-0630FS0.632560.566
JFC0456-0700FS0.702080.805
JFC0456-0750FS0.751751.240
JFC0456-0800FS0.801551.880
JFC0456-1100FS1.001483.500
JFC0456-1125FS1.251024.760
JFC0456-1150FS1.50856.305
JFC0456-1160FS1.60756.505
JFC0456-1200FS2.00448.950
JFC0456-1250FS2.504316.025
JFC0456-1300FS3.003321.560
JFC0456-1315FS3.152922.750
JFC0456-1350FS3.502727.050
JFC0456-1400FS4.002531.808
JFC0456-1500FS5.001940.250
JFC0456-1600FS6.001867.245
JFC0456-1630FS6.301773.550
JFC0456-1700FS7.001576.280
JFC0456-2100FS10.01377.350
JFC0456-2150FS15.01278.180
JFC0456-2200FS20.01179.280
JFC0456-2250FS25.01079.980
JFC0456-2300FS30.0980.280
JFC0456-2400FS40.072-100VDC
125-250VAC		1KA@32VDC
500A@72VDC
300A@100VDC		1.201360
JFC0456-2500FS50.00.991949
JFC0456-2600FS60.00.792887
JFC0456-2800FS80.00.555270
JFC0456-3100FS1000.338080
