Electrical properties

Part Number	DC Spark-over Voltage	Maximum Impulse Breakdown Voltage		Max. Impulse Discharge Current (8/20μs)		Impulse Life (10/1000μs)	Normal Alternating Discharge Current		DC Holdover Voltage	Minimum insulation Resistance	Maximum Capacitance (1MHz)
	100V/ S	100V/ μS	1KV/ μS	1 times	10 times	100A	50Hz 1Sec	Single 9Cycles	DC Holdover Voltage	Minimum insulation Resistance	Maximum Capacitance (1MHz)
	(V)	(V)	(V)	(KA)		Times	(A)		(V)	(GΩ)	(pF)
JTA28-070H	70±20%	500	600	15	10	300	10	65	52	1	1.5
JTA28-075H	75±20%	500	600	15	10	300	10	65	52	1	1.5
JTA28-090H	90±20%	500	600	15	10	300	10	65	52	1	1.5
JTA28-120H	120±20%	500	700	15	10	300	10	65	52	1	1.5
JTA28-130H	130±20%	500	700	15	10	300	10	65	52	1	1.5
JTA28-150H	150±20%	500	700	15	10	300	10	65	52	1	1.5
JTA28-230H	230±20%	500	700	15	10	300	10	65	80	1	1.5
JTA28-250H	250±20%	500	700	15	10	300	10	65	135	1	1.5
JTA28-300H	300±20%	700	900	15	10	300	10	65	150	1	1.5
JTA28-350H	350±20%	700	900	15	10	300	10	65	150	1	1.5
JTA28-400H	400±20%	800	1000	15	10	300	10	65	150	1	1.5
JTA28-470H	470±20%	900	1100	15	10	300	10	65	150	1	1.5
JTA28-600H	600±20%	1100	1300	15	10	300	10	65	150	1	1.5
JTA28-800H	800±20%	1300	1500	15	10	300	10	65	150	1	1.5
JTN28-070H	70±20%	500	600	15	10	300	10	65	52	1	1.5
JTN28-075H	75±20%	500	600	15	10	300	10	65	52	1	1.5
JTN28-090H	90±20%	500	600	15	10	300	10	65	52	1	1.5
JTN28-120H	120±20%	500	700	15	10	300	10	65	52	1	1.5
JTN28-130H	130±20%	500	700	15	10	300	10	65	52	1	1.5
JTN28-150H	150±20%	500	700	15	10	300	10	65	52	1	1.5
JTN28-230H	230±20%	500	700	15	10	300	10	65	80	1	1.5
JTN28-250H	250±20%	500	700	15	10	300	10	65	135	1	1.5
JTN28-300H	300±20%	700	900	15	10	300	10	65	150	1	1.5
JTN28-350H	350±20%	700	900	15	10	300	10	65	150	1	1.5
JTN28-400H	400±20%	800	1000	15	10	300	10	65	150	1	1.5
JTN28-470H	470±20%	900	1100	15	10	300	10	65	150	1	1.5
JTN28-600H	600±20%	1100	1300	15	10	300	10	65	150	1	1.5
JTN28-800H	800±20%	1300	1500	15	10	300	10	65	150	1	1.5

Tag: JTA28H-JTN28H

亚洲一区二区在线视频_久久久精品一区二区三区_久久99精品国产99久久6男男_亚洲成人自拍_久久99成人_91成人免费看片

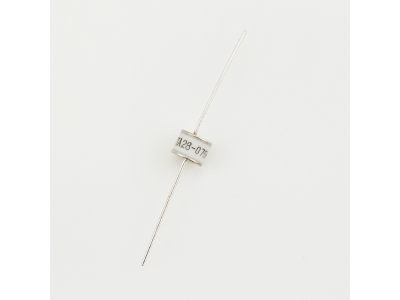

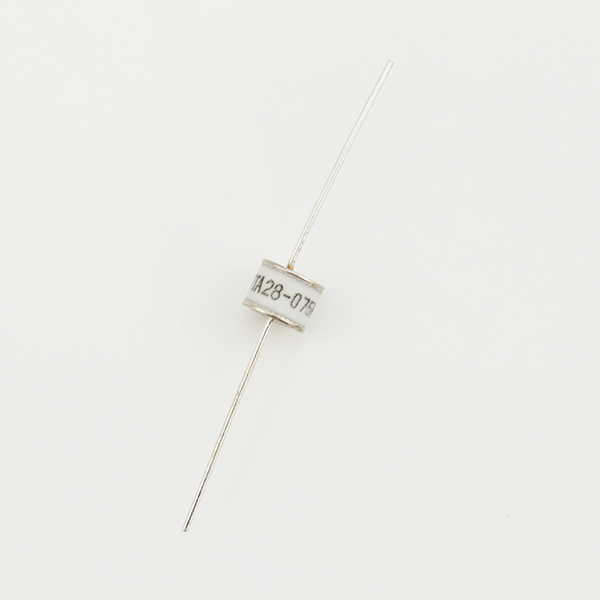

JTA28H-JTN28H series

Electrical properties
